In Spruce Grove, the sun sets before 4:30 PM on the winter solstice. That fact has direct business implications. Any retail or service business open in the evening is operating in darkness for a significant portion of its customer-facing hours for four to five months of the year. An unilluminated sign that reads perfectly at noon in August is invisible at 5 PM in December.
Illuminated signs are not a premium add-on for Alberta businesses. They are a functional requirement for any business that wants to be identifiable during evening hours, which, in Spruce Grove’s latitude, means the entire winter retail and service season. Century Road, Highway 16A, and the commercial corridors that serve Spruce Grove’s growing residential population are active after dark. The businesses on those corridors that are visible after dark are the ones that capture that traffic.
This guide covers the main illuminated sign options for Spruce Grove businesses: LED channel letters, backlit cabinet signs, and the broader category of lighted business signs. It also covers Spruce Grove’s permit requirements for illuminated signs, because the two-permit process (development permit plus electrical permit) surprises business owners who haven’t done an illuminated sign before.
Why Illumination Matters More in Alberta Than in Most Markets
Alberta’s latitude means significantly shorter days in winter than most of North America south of the 49th parallel. The winter solstice in Spruce Grove delivers approximately 7.5 hours of daylight, with sunrise around 8:40 AM and sunset around 4:15 PM. Compare this to Calgary at the same date (roughly 8 hours) or Vancouver (roughly 8.5 hours), and the difference is meaningful for retail.
The practical impact on signage: for six to seven months of the year, businesses on Spruce Grove’s commercial corridors have significant foot and vehicle traffic after dark. The evening peak hours for grocery stores, pharmacies, restaurants, fitness studios, and most personal services businesses all fall in the period when unilluminated signs are effectively invisible. A non-illuminated sign is choosing not to advertise to that audience.
On Highway 16A and Century Road, this effect is amplified because these are vehicle-oriented corridors where the sign is seen from a moving vehicle at speed. At 60 km/h at night, an unilluminated sign simply does not exist. An illuminated sign commands immediate attention because it is the contrast between the light source and the dark background that creates visibility.
LED Channel Letters: The Premium Standard for Spruce Grove Storefronts
LED channel letters are individually fabricated three-dimensional letter forms, each with LED illumination modules built inside, mounted directly on the building face. They are the most effective illuminated sign type for most Spruce Grove retail and service storefronts because they are visible at distance during both daylight and evening hours, because they look premium and custom rather than generic, and because modern LED modules are efficient enough to run continuously for years without meaningful energy cost.

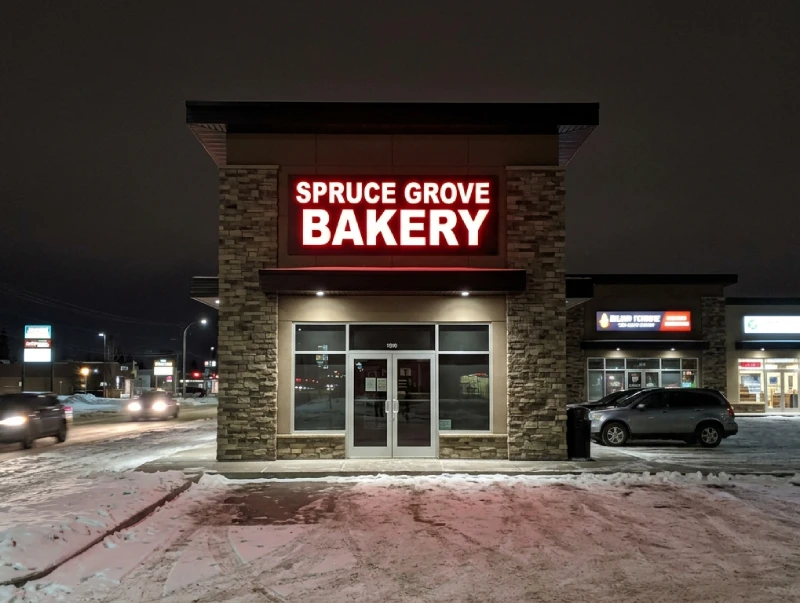

Front-lit channel letters have a translucent acrylic face through which the LED illumination projects forward. The effect at night is a glowing letterform against the building face: legible, bright, and clearly identified. During daylight hours, the dimensional letter form with its painted aluminum returns reads as a solid, professional sign against the building. These are the letters you see on most franchise retail storefronts and for good reason: they work.
Halo-lit channel letters are constructed differently: the letter face is solid aluminum, open at the back, with LED modules pointing toward the building surface. Light projects behind the letter rather than through it, creating a glow or halo around each letter form on the building face. The effect is sophisticated and architectural, since it’s more restrained than front-lit, appropriate for businesses in Spruce Grove’s newer commercial developments and mixed-use projects where the aesthetic context calls for something more refined than standard commercial illumination.
The City of Spruce Grove sign bylaw applies to all channel letter installations, and illuminated channel letters require both a development permit from Planning Services and a separate electrical permit for the LED connections. The electrical work must be performed by a licensed Alberta electrician. Your sign company coordinates the sign installation; the electrical contractor coordinates the power connection and the electrical permit. Both permits should be in hand before installation begins.
Backlit Signs Spruce Grove: Cabinet and Lightbox Options
Cabinet signs are single-unit illuminated displays: an aluminum frame structure with an internally illuminated face, typically translucent acrylic or polycarbonate, with the business name and logo printed or applied to the face. They are less expensive than channel letters, have a faster production turnaround, and are the standard format in many Spruce Grove plazas where the property management has specified a standard sign band for tenants.
Modern slim-profile LED cabinet signs are a significant improvement over the older fluorescent-lit boxes that defined commercial signage for decades. LED illumination is dramatically more energy-efficient, lasts far longer without maintenance, and distributes light more evenly across the face without the dark spots and uneven lighting that fluorescent tubes produce as they age. If you have an existing fluorescent cabinet sign, LED retrofit is worth considering even before the sign reaches end of life. The energy savings from the conversion often pay back the retrofit cost within two to three years.
Face material choice matters more than most business owners realize. Standard acrylic faces are clear and bright but become progressively more brittle at low temperatures. In Spruce Grove’s winter conditions, an acrylic face on an outdoor cabinet sign becomes significantly more vulnerable to impact damage at temperatures below -15°C. Polycarbonate faces are the better specification for Alberta outdoor applications: polycarbonate remains impact-resistant at temperatures well below -30°C, making it far more appropriate for a sign that will be in service through multiple Alberta winters.

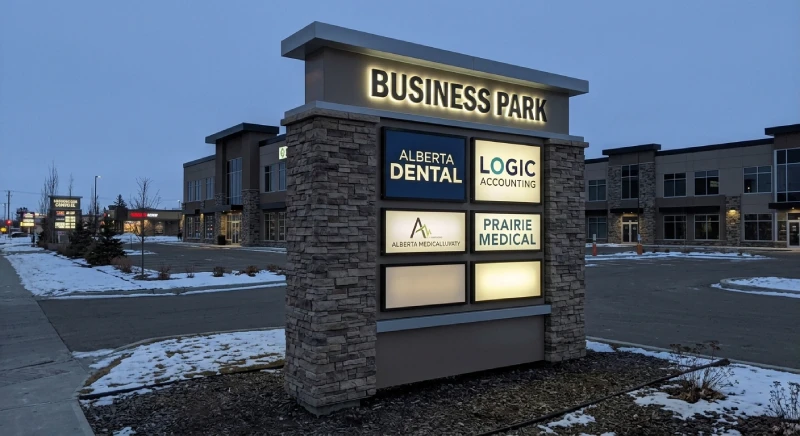

For monument signs at the entry drives of Spruce Grove’s business parks and commercial developments, backlit insert panels are a common and effective format. The monument structure provides the architectural presence, and the internally illuminated face panel provides the night-time visibility. For multi-tenant monument signs where individual business name panels can be replaced as tenants change, this is also the most practical long-term format.
Lighted Business Signs: Other Options Beyond Channel Letters and Cabinets
Beyond the two dominant formats, several other illuminated sign types are appropriate for specific Spruce Grove business contexts.
Halo-lit dimensional letters in metal are the premium choice for businesses where the sign should read as a permanent architectural element. Law offices, medical clinics, financial services firms, and businesses in higher-end commercial developments in Spruce Grove’s newer areas use this format for the clean, modern aesthetic it creates. The halo of LED light behind a brushed metal letter on a stone or cladding building face is the contemporary version of a classic signage aesthetic.
External illumination is a lower-cost alternative to internally illuminated signs and is appropriate for some contexts: monument signs in low-vandalism locations, sign panels on heritage-style buildings where internally illuminated signs are not permitted, and temporary applications where internal illumination would be over-engineered. The limitation is precision: external lighting illuminates the sign and whatever is adjacent to it, while internal illumination illuminates only the sign itself. For commercial corridors with visual competition from adjacent signage, internal illumination is more effective.
LED message boards and electronic message centres are a separate category appropriate for businesses that benefit from changing messages: quick-service restaurants with daily specials, gas stations with fuel pricing, healthcare facilities with appointment availability, and service businesses with multiple service categories. Spruce Grove’s sign bylaw has specific rules for EMCs governing their size as a proportion of the total sign area and their permitted locations. Confirm the bylaw provisions with the city or your sign company before investing in an EMC.
Spruce Grove Sign Permit Requirements for Illuminated Signs
The permit process for illuminated signs in Spruce Grove involves two separate applications: a development permit from the City of Spruce Grove Planning Services, and an electrical permit from the electrical safety authority for the illumination components. These are parallel processes that can run simultaneously once the sign design is finalized, but both must be approved before installation and energization of the sign.
The development permit application requires dimensioned sign drawings showing the sign dimensions, mounting method, height above grade, and sign area calculation. For building-mounted signs, a photo or drawing of the building face with the proposed sign position indicated is standard. For ground signs, a site plan showing setbacks from property lines is required. The City of Spruce Grove Planning Services can confirm the current required documents for your specific sign type.
Typical development permit review in Spruce Grove takes two to three weeks for a complete, standard application. Applications for signs that require a variance from the bylaw take longer and involve a formal variance process. The electrical permit is filed with the electrical safety authority by the licensed electrician performing the connection and typically runs on a similar timeline.
FAQ
- What is the difference between channel letters and a cabinet sign? – Channel letters are individually fabricated dimensional letter forms mounted directly on the building face. A cabinet sign (or lightbox) is a single rectangular unit with an internally illuminated face displaying the business name and logo as a flat graphic. Channel letters produce a premium, custom appearance with each letter standing as a dimensional element; cabinet signs offer lower cost and the practical advantage that the face graphic can be updated without replacing the hardware.
- How much do illuminated signs cost in Spruce Grove? – Illuminated sign costs in Spruce Grove vary significantly by type and size. An internally illuminated cabinet sign for a small retail storefront typically starts around $2,500 to $4,500 installed, including the electrical connection. LED channel letters for a typical retail frontage range from approximately $3,500 to $8,000 or more depending on letter count, size, and illumination type. Halo-lit dimensional metal letters are generally at the higher end of the channel letter range. A detailed quote requires a site visit to assess frontage dimensions, electrical access, and mounting conditions.
- How energy-efficient are LED signs compared to older neon or fluorescent? – Modern LED illuminated signs consume approximately 50 to 80 percent less electricity than comparable neon or fluorescent signs. LED modules in channel letters and cabinet signs are rated for 50,000 or more hours of operation; at 12 hours per day, that is over 11 years of use before the LED output begins to degrade measurably. For a business running its sign 12 hours daily, the energy savings of LED over neon can recover the incremental cost difference within two to three years.
- Do illuminated signs need a separate electrical permit in Spruce Grove? – Yes. In Spruce Grove, illuminated signs require both a development permit from the City of Spruce Grove Planning Services and a separate electrical permit from the electrical safety authority. The electrical work must be performed by a licensed Alberta electrician. Your sign company coordinates the sign installation; the electrical contractor files the electrical permit and performs the power connection. Both permits should be in place before the sign is installed and energized.
- Can I retrofit an existing non-illuminated sign with LED? – In many cases, yes. Existing cabinet signs with fluorescent tube illumination can be retrofitted with LED modules, which reduces energy consumption significantly and eliminates the ongoing cost of fluorescent tube replacement. Existing neon channel letters can often be retrofitted with LED modules sized to fit the letter returns. Feasibility depends on the condition of the existing sign housing and electrical infrastructure. A sign company can assess your specific sign and advise whether retrofit is more cost-effective than full replacement. The answer often depends on how close the existing sign is to end-of-housing life.
